When a 1 in 500 Year Event Is Not As It Appears: The Edgecumbe Flood of April 2017

Authors: Peter Urich and Yinpeng Li

CHRIS MCKEEN: FAIRFAX NZ NEWS

New Zealand has recently experienced some seriously damaging rainfall events. In fact, New Zealand has been described as a ‘Pluvial Society’ (Daya-Winterbottom, 2011) and we seem to be living up to that billing.

The recent event in Edgecumbe with the breaching of the stopbank and the impressive surge of water through the town and resultant dramatic evacuations have filled the news with imagery and some apparently off-the-cuff comments on the extreme nature of the event:

This from the Whakatane District Council: The Whakatane and Rangitaiki Rivers have experienced unprecedented 1:500 year flood events. That has seen breaches of stopbanks on both rivers. (Source: http://www.stuff.co.nz/national/91275516/In-pictures-Edgecumbe-evacuated-in-500-year-event)

The oft repeated statement across social media and the more established press has been the claimed fact that this event represents a 1 in 500 year flood. That statement itself is challenging to understand and creates some questions:

  • Is a 1 in 500 year flood event matched by a 1 in 500 year rainfall event?
  • Return periods are shifted by the flood event itself and this puts such numbers into question.
  • There are always mitigating factors such as flood management schemes (hard infrastructure and social/behavioural) and how they are designed, constructed and operated including dams and stopbanks and civil defense and emergency services.
  • There are also the pre-event climatic conditions that can influence the severity of the actual event.

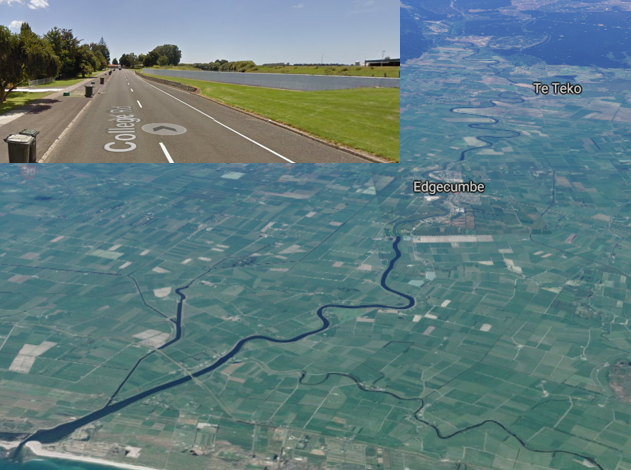

Figure 1: Location of Edgecumbe in the Bay of Plenty, New Zealand and the original stopbank at the point where it was subsequently breached.

A rapid analysis of the rainfall data from the recent event in the context of 27 years of rainfall data from the nearby Whakatane Aero AWS meteorological site run by the Metservice and the Te Teko river gauging and met station tell a slightly different story.

There are various ways one can analyse the data. Over 27 years of daily data analysed from Whakatane the top 10 single day rainfall events plus the extreme daily value from the Te Teko rain gauge for the area and their dates can be seen in Table 1 below.

Table 1: Top ten daily extreme rainfall totals from the Whakatane Aero Aws meteorological site over the last 27 years of record with Te Teko extreme value (195 mm) from the recent event included.

Year Month Day Precip (mm) Return Period
2017 4 5 195.0 199.0 yrs*
2010 6 2 170.4 62.0 yrs
2010 5 25 153 27.8 yrs
1992 7 22 141.8 16.9 yrs
2004 7 18 127.6 9.1 yrs
2001 2 18 120 6.7 yrs
2004 7 17 118.2 6.2 yrs
2017 4 5 116.6 5.8 yrs
2006 2 11 116.4 5.7 yrs
2014 12 18 114 5.2 yrs
1996 12 31 110.6 4.5 yrs

*Te Teko daily rainfall total of 195 mm when compared with historical rainfall at Whakatane Aero Aws places the event in the 199.0 year return period scale. Further analysis is required but this is indicative of the extreme nature of the rainfall event in the local vicinity.

As a single event the recent rainfall ranks very highly compared to the historical data available from the Whakatane Aero Aws site.

The analysis of consecutive multiple day events can also tell a story. We looked at two, three and four consecutive day events and the rainfall totals become more impressive. The highest four day cumulative event over the last 27 years at Whakatane Aero Aws was the flood event of 2004 when 291.2 mm of rain fell. At that time it was a 1 in 100 year event. In contrast, the recent event related to the Edgecumbe flooding when analysed over four consecutive days and totaled 195.4 mm for a return period of 1 in 76 years while four day cumulative total at the Te Teko rain gauge was 281 mm and in comparison with the Whakatane Aero Aws site was a 1 in 76 year event as was the three day total. Clearly the one and two day totals were extraordinary when compared with the cursory examination of Whakatane Aero Aws data that covered the 2004 extreme rainfall event. Over the two worst days of the current event Te Teko had 274 mm and Whakatane Aero Aws had 182.2 mm.

Table 2: Greatest four day cumulative total rainfall in the last 27 years of record for the Whakatane Aero Aws site.

Year Month Day Precip (mm)
2004 7 16 36.8
2004 7 17 118.2
2004 7 18 127.6
2004 7 19 8.6
Total 291.2

Table 3: Four day cumulative rainfall total for the recent Edgecumbe flood event for the Whakatane Aero Aws site.

Year Month Day Precip (mm)
2017 4 3 0.4
2017 4 4 12.8
2017 4 5 116.6
2017 4 6 65.6
Total 195.4

Table 4: Four day cumulative rainfall total for the recent Edgecumbe flood event for the Te Teko rain gauge.

Year Month Day Precip (mm)
2017 4 3 5.00
2017 4 4 79.0
2017 4 5 195.0
2017 4 6 2.0
Total 281.0

With climate change not only could the magnitude of a one day and multiple consecutive day events increase but frequency of such events is also likely to increase.

Table 5: Change in return periods for 1 day rainfall extremes to 500 years and the baseline precipitation and the future projected change in rainfall amount for the baseline precipitation applying a median ensemble of 28 daily rainfall General Circulation Models (GCMs) in 2040.

Baseline RP mm/ Baseline mm/2040 2040 RP for Baseline Values
2 87 89 1.9
5 113 119 4.1
10 130 138 7.5
20 146 156 13.5
50 166 179 29.4
100 181 197 52.5
200 195 214 93.4
300 203 224 130.3
400 209 231 164.9
500 214 237 197.7

Table 6: Change in return periods for 2 consecutive day rainfall extremes to 500 years and the baseline precipitation and the future projected change in rainfall amount for the baseline precipitation applying a median ensemble of 28 daily rainfall General Circulation Models (GCMs) in 2040.

Baseline RP mm/ Baseline mm/2040 2040 RP for Baseline Values
2 113 117 1.9
5 154 162 4.2
10 181 192 7.7
20 206 221 14.0
50 238 257 30.7
100 261 285 55.3
200 284 312 98.7
300 298 328 138.2
400 307 339 175.1
500 314 348 210.3

In summary, the Te Teko rain gauge site is very important to the understanding of the recent extreme rainfall event. While a cursory examination has occurred here it is worthy of further examination taking in a wider regional context where data is available. The multiple day aspect is also important but we should not lose sight of the extreme short bursts of rain such as the one hour total of 25 mm recorded at the Te Teko rain gauge.

The discussion of the temporal distribution of rainfall segues to subsequent flood profiles. The rainfall event largely centered on the 4th and 5th of April. This impacted on Edgecumbe but was preceded by significant events in early March and late March (see figure 3). The event of the 4th and 5th may have been exacerbated by these previous heavy events i.e. they could have led to already high regional water tables and changes in recharge rates and enhanced overland flow that were perhaps not represented in earlier stream flow data. Data on the water table characteristics should be available from GNS as they installed a network of lysimeters across the region for measuring recharge to groundwater (Lovett et al., 2015).

The rainfall event of the 4th and 5th could therefore have become just that much more potentially destructive as the capacity of the catchment to absorb yet another extreme rainfall event over an already wet month and perhaps over a wetter than normal year. All of these things should be considered when detailed analysis of the event undoubtedly occurs.

River Flow and Return Periods

The peak flow rate for the recent Edgecumbe flood reached to approximately 850 m3/s. In recent history the 2004 flood reached a maximum at Te Teko of 760 m3/s, close to a Q100 flow based on 26 years of data to that time. Using BOP historical summary information from Te Teko 1980-2005 this year’s event is in the range of a 150-200 year event. However, the additional data since 2004 including the recent flow data shortens to approximately a 1 in 50 year event. These return periods are based on a rapid assessment and more thorough statistical analysis is required but we are fairly confident that the return period for the event period is shortening given the number of significant events in recent times. Furthermore with the next significant event the return period values will change again.

The critical point to be made is that extreme flood events are experiencing greater frequency and the signal is toward a shortening of the return period. Climate change is well known to be related to such non-stationarity therefore this needs to be incorporated into analysis, then applied to the design of a possible range of adaptation options. The uncertainties in the return year analysis, especially in such rare events have already been described by various experts (McQuiland, 2017). The important point being that if the current stopbank in its re-design once again applies a 1 in 100 design parameter then the risk of breaching will return again as the non-stationarity of extreme rainfall, as the modeling data already shows can occur. This is often the challenge when retrofitting infrastructure and buildings for climate change. They should be designed for the future not for the historical record i.e. the past.

This is where policy becomes important. As noted in the very helpful guidance document prepared by SOLGM:

There is no direct reference to climate change in the LGA (Local Government Act 2002). However, actions by councils are linked to the purpose of providing good quality infrastructure to fulfil the needs of communities and the performance of regulatory functions conferred by other legislation.

Good quality in this context means effective, efficient and appropriate to the future needs of the community. Climate change adaptation has links to all three of these elements of good quality. For example, greater frequency and severity of adverse weather will have implications for levels of service expected from protective assets such as seawalls and stopbanks (i.e. will raise the standard of what’s needed to be effective). Those planning renewal of infrastructure of any type will need to consider whether the communities of today will have to retreat in the light of sea level rise (or other land-based flood risks). (Source: SOLGM, 2016 (emphasis added))*

*See the SOLGM publication for more detail on climate change in the context of the Building Act and for more information on the Local Government Act in reference to hazards and infrastructure planning and the Government’s 2004 Climate Change Response amendments to the RMA.

Table 7: Rangitaiki river flood flow rates and return periods based on historical analysis conducted just after the 2004 event i.e. placing the current flood event in the context of previous events to 2005.

Return Period m3/s
2 189.1
5 297.3
10 395.2
15 456.0
20 500.2
30 563.9
40 609.8
50 645.8
100 759.4
150 826.9
200 875.1
300 943.6
500 1030.4

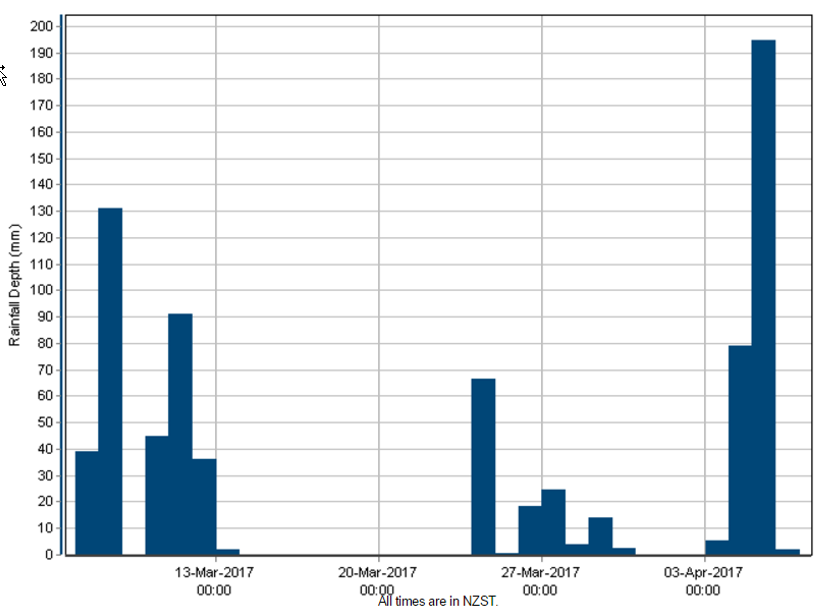

Figure 2: Daily rainfall amounts recorded at the Te Teko gauging site upriver from Edgecumbe.

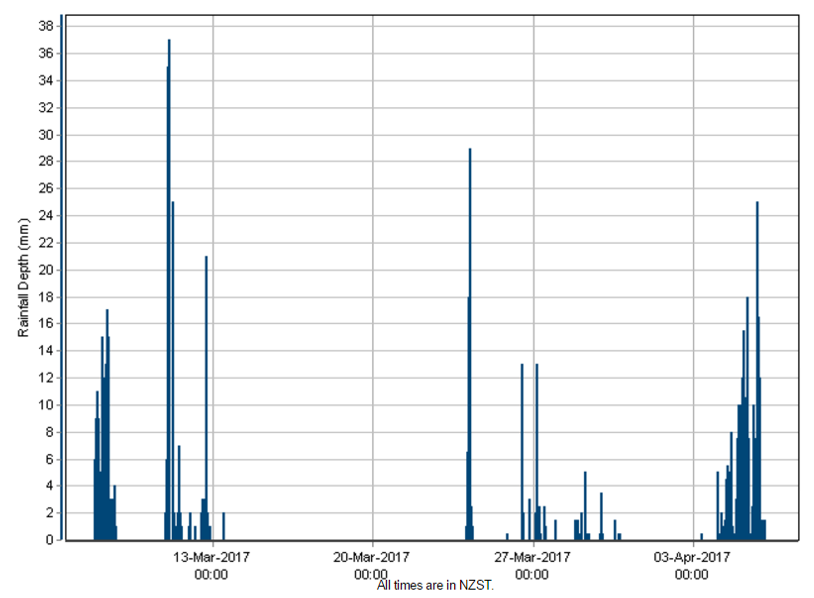

Figure 3: Hourly rainfall amounts recorded at the Te Teko gauging site upriver from Edgecumbe.

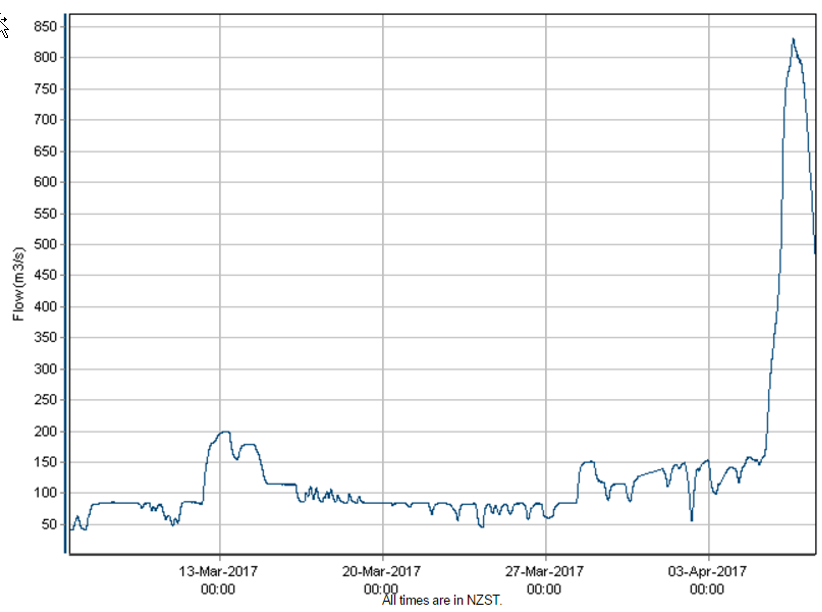

Figure 4: Rangitaiki river flow rates in m3/s over the last week in response to the extreme rainfall event.

Table 8: Rangitaiki river flood flow rates and return periods based on the incorporation of the most recent event with previous data.

Return Period m3/s
2 188.7
5 327.0
10 464.4
15 552.0
20 616.6
30 710.3
40 778.4
50 832.0
100 1002.2
150 1103.8
200 1176.7
300 1280.3
500 1412.4

Summary

The rainfall totals for the Whakatane Aero Aws site and Te Teko rain gauge associated with the river gauging station in the context of the recent Edgecumbe flood event represent an extreme event but not of the magnitude as reported by social media. As is often the case and as we described in the recent Ardmore Treatment Plant issue with the management of extreme rainfall we once again need to look at the regional context and in this case the temporal distribution of extreme rainfall events over the preceding month or months. Then there are the issues of the built environment. In the Edgecumbe case there was a breach of a stopbank in a location that led to rapid and profound flooding of an urbanised area. The extreme event of 2004 flooded 15,000 hectares of farmland and caused considerable damage. That event was also the result of a breached stopbank. Climate change will lead to more frequent and intense rainfall events therefore the link to flood mitigation design be that dams, reservoir management and stopbank design and civil defense responses could all be examined. But these should not be considered in isolation. Environmental management in the future by New Zealand’s pluvial society will continue to be tested. The clear signal of non-stationarity --meaning past events will not necessarily be appropriate for predicting future extreme events -- could exacerbate risks for communities going forward if not recognized and considered. The modelling capacity is available and is being applied elsewhere and is being increasingly called for internationally (TCFD, 2016). How many more examples do we need of overwhelmed infrastructural designs?

References

Daya-Winterbottom, T. (2011). Sustainability, governance and water management in New Zealand. Presented at the 9th IUCN Academy of Environmental Law Colloquium, Conference held at Mpkweni, South Africa. 4-8 July, 2011.

Lovett, A.P.; Gordon, D.; Pearson, L.; Huchby, B.; Mojsilovic, O. 2015 New Zealand lysimeter monitoring site installations. 2 p. IN: NZ Hydrological Society Annual Conference : from data to knowledge, 1 to 4 December 2015, Hamilton : [abstracts]. Wellington: New Zealand Hydrological Society.

McQuillan, L. (2017). Q&A: What is a one in 500-year flood, and does that really apply to Edgecumbe? Stuff 9 April. http://www.stuff.co.nz/national/91369561/qa-what-is-a-one-in-500year-flood-and-does-that-really-apply-to-edgecumbe. Accessed 10 April 2017.

NIWA (2004) July 2004 Bay of Plenty Flooding and Landslides (2004-07-15) https://hwe.niwa.co.nz/event/July2004BayofPlentyFloodingand_Landslides. Accessed 7 April 2017.

NZ Herald (2017) Edgecumbe evacuates as water swamps the town. http://www.nzherald.co.nz/nz/news/article.cfm?c_id=1&objectid=11832903. April 6, 2017. Accessed 7 April 2017.

SOLGM (2105). Climate change. New Zealand Society for Local Government Managers. P.41 https://12233-console.memberconnex.com/Attachment?Action=Download&Attachment_id=552

Stuff (2017). Thursday in pictures: Edgecumbe evacuated in '500-year event'. http://www.stuff.co.nz/national/91275516/In-pictures-Edgecumbe-evacuated-in-500-year-event. Accessed 7 April 2017

TCFD (2016). Recommendations of the Task Force on Climate-related Financial Disclosures. Task Force on Climate-related Financial Disclosures. P. 74. https://www.fsb-tcfd.org/
